WDM/KS does not show VAC

Post by SP2EWQ »

Hi,

I am configuring VACs in PowerSDR for Flex-5000a.

I have installed (Muzychenko's) VACs. However, they are not visible for WDM/KS driver.
The only options for which VACs are visible are MME and Windows Direct Sound audio drivers.

On the other hand VB-Cables are well visible in all three menus.

Can You suggest, please,
what may be the cause that WDM/KS cannot see these Muzychenko's cables?

Best regards,
Alec SP2EWQ
Top
UT4ULP
Posts: 2
Joined: Fri Jan 15, 2021 10:13 am
Location: Ukraine
Contact:
Contact UT4ULP

Re: WDM/KS does not show VAC

Post by UT4ULP »

In order for virtual cables to become available in WDM/KS for PowerSDR, you need to change the mode from Auto to WaveCyclic.

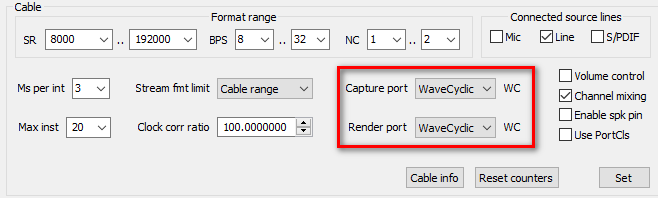

Set the virtual cables settings as in the screenshot:
